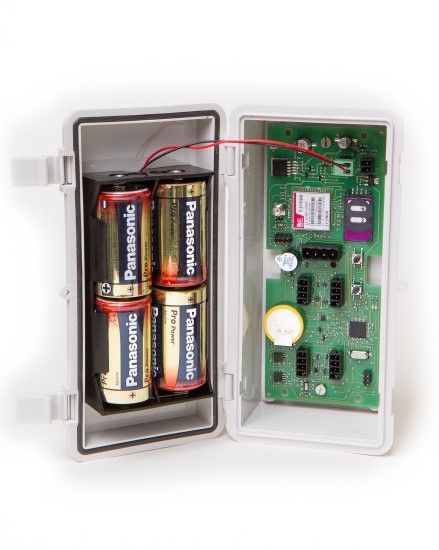

TrueLog 100

A universal datalogger with TBUS interface and optional extension modules

Specification

Sensor interface

RS-485 (TBUS)
Up to 50 sensors per logger

Memory

32 MB for data

Power

4 D cell alkalines
Other battery options and solar cell on request


Housing

Weatherproof, UV- and impactresistant, IP66 protected


Sensor compatibility

All TRUEBNER sensors with RS485 TBUS, analog sensors with optional extension module


GPRS

Optional on board modem, SIM card holder and antenna connector (appropriate SIM card and server access required)


Interface

TRUEBNER RS485 to USB cable



Connector

4 pin solid screw-type connectors with cable glands


Dimensions

100 mm x 200 mm x 70 mm


Lieferumfang

Datalogger in housing
Set of screw type connectors, preinstalled cable glands
Download link for software


Documents

Datasheet TrueLog100

Manual TrueLog100

Software Download

PC logger software for TrueLog100s
